FIRSTLEGENDS at checkout.Features:
Adopting the new 10th generation chip with the number of satellite searches is 50+
QMC5883L compass gives more accurate pointing
The receiving channel is expanded to 120ch so the satellites can search more and faster into the chip.
Five-mode positioning gives a strong and stable signal
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃

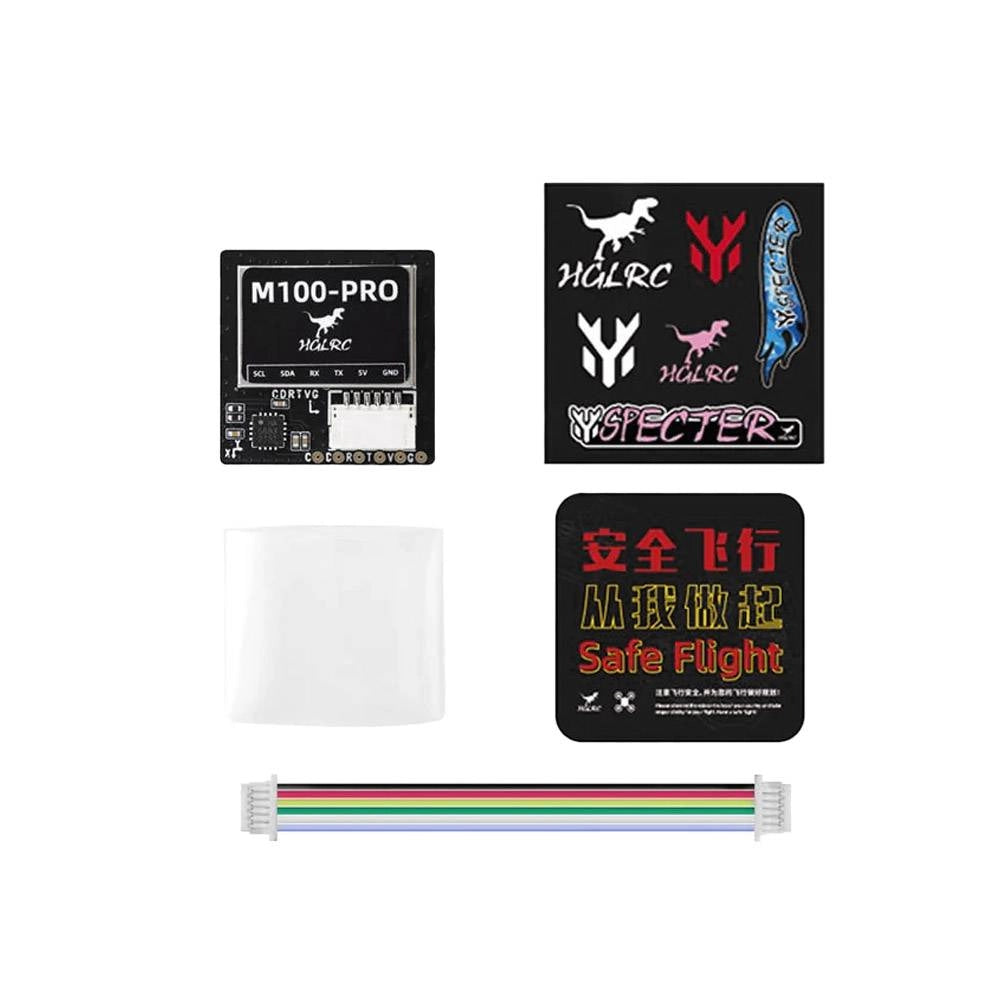

Includes:
HGLRC M100 PRO GPS x 1
Heat shrink tube (18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
