Vannystyle Mini

Minimum quantity	Discount
Buy 2 +	Get 10% discount

SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More

Precio

In Stock

The 250g AUW quad from Alex Vanover! Read more

Estilo

DJI O3 / Universal

DJI O4

Cantidad

NOTE: This item is on pre-order. Estimated to ship in 0 to 1 days.

(PRE-ORDEN) Kit de cuadro Vannystyle Mini de 3,5" - Elige el estilo

$45.99

Ships from: WREKD Warehouse, Ohio, United States
Learn about our Shipping and Return Policy

Earn 45 CaveCoin by purchasing this item.

Log In or Sign Up to start earning on your next order.

[{"id":49501775626544,"title":"DJI O3 \/ Universal","option1":"DJI O3 \/ Universal","option2":null,"option3":null,"sku":"139128","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"(PRE-ORDEN) Kit de cuadro Vannystyle Mini de 3,5\" - Elige el estilo - DJI O3 \/ Universal","public_title":"DJI O3 \/ Universal","options":["DJI O3 \/ Universal"],"price":4599,"weight":112,"compare_at_price":6499,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49501775659312,"title":"DJI O4","option1":"DJI O4","option2":null,"option3":null,"sku":"139129","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"(PRE-ORDEN) Kit de cuadro Vannystyle Mini de 3,5\" - Elige el estilo - DJI O4","public_title":"DJI O4","options":["DJI O4"],"price":4599,"weight":112,"compare_at_price":6499,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

About this item

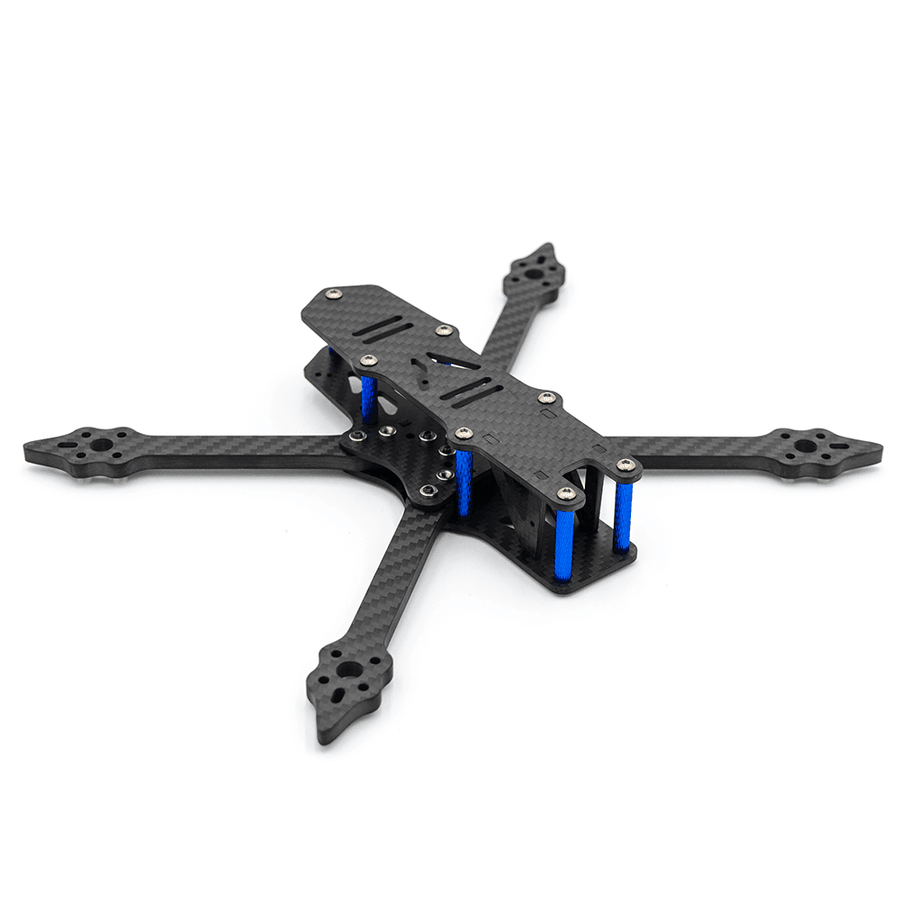

El kit de armazón Vannystyle Mini es una versión ultrapequeña del legendario armazón Vannystyle Pro, diseñado específicamente para hélices de 3,5". Con la cámara DJI O4 a bordo, este es el dron de cine pequeño perfecto o un gran destructor de patio trasero del vecindario. Diseñado para aquellos que desean agilidad y control extremos sin sacrificar la durabilidad o la sensación de vuelo. El Vannystyle Mini ofrece un rendimiento de vuelo excepcional en un armazón compacto y liviano.

Elija entre las placas de cámara universales (DJI O3, Analog, Walksnail, etc.) o las placas de cámara DJI O4 .

Presupuesto

Material : Fibra de carbono de sarga 3K
Tamaño de la hélice : 3,5"
Soporte del motor : 16 x 16 mm
Espesor de la placa superior : 2 mm
Espesor de la placa inferior : 2 mm
Grosor del brazo : 4 mm
Grosor de la placa de la cámara : 2 mm
Grosor de CamWiggle : 1,5 mm
Grosor de la placa intermedia : 1,5 mm

Incluye

1 x Kit de marco
- 1 x placa inferior
- 2 x placas de leva
- 2 x placas de movimiento de leva
- 1 x placa intermedia
- 1 x placa superior
5 x Brazos
1 x Correa de batería WREKD®
1 x Almohadilla de agarre de batería
1 x Kit de hardware
- 5 separadores de aluminio M3 x 20 mm (azul oscuro)
- 1 x Separador de aluminio M2 x 20 mm (azul oscuro)
- 3 tornillos avellanados de acero M3 x 5 mm
- 2 tornillos avellanados de acero M3 x 10 mm
- 4 tornillos avellanados de acero M3 x 12 mm
- 5 tornillos de cabeza redondeada de acero M3 x 5 mm
2 insertos de placa de cámara de TPU para Universal o 4 insertos de placa de cámara de TPU para DJI o4
1 x soporte de antena plegable de TPU

One of the better 3.5"

+ light weight
+ elegant
+ low profile
+ toilet tank
+ 12x12mm & 9x9mm motor mounting

- Camera Protection not sufficient

Used components:
t-motor 1604 3800kv + HQProp 3525, 650mah s4, DJI O4 Pro

I think the Tanq 3.5 is the better frame, but slightly too heavy and only supports 9x9mm motor mounting.
The ItsFPV ERA 3.5 is way more durable but also really heavy.
The Vannystyle Mini has the best flight envelope, but provides the least protection for the Cam.

Solid built and well balanced.

Great frame, and my second frame.Only thing I would like to see would be mounting holes for the 04 Pro air unit.

No Weak threads

For some reason, I couldn’t edit my old review, so I’m writing a new one. It wasn’t a weak thread, it was me using the wrong length screw, which never even reached the thread. After wasting time trying to replace it, I realized it had flown perfectly fine for 5 months without two screws in the frame. I take my hat off to the greatest frame ever.

Pretty Easy Build, and Flies Great!

I didn't have any real trouble with this build, but I did have to do some significant filing on one of the camera cage panels to make it fit into the main frame's slots. (Not a big deal at all, though!)
My build has been flying great: O4 Pro, Goku AIO, VCI 1605 3800KV motors, and GF 3520 props. I've been liking the 850mah Dogcom's with this...

One issue for me with my final build: the O4 camera cage's front bumpers (in the "Your Way" TPU kit) didn't allow enough clearance on the sides to add an ND filter on the camera lens... so I had to remove them after I took this picture, and my camera feels pretty vulnerable now when I'm flying. YMMV though!

Weak threads.

The frame looks good so far except that the very first screw thread was stripped with a casual torque. Also, I got a wrong strap that looks thinner than anything I see on the pictures and videos. Seems like wrekd say they used “whatever strap” was lying around for video to avoid the responsibility.
