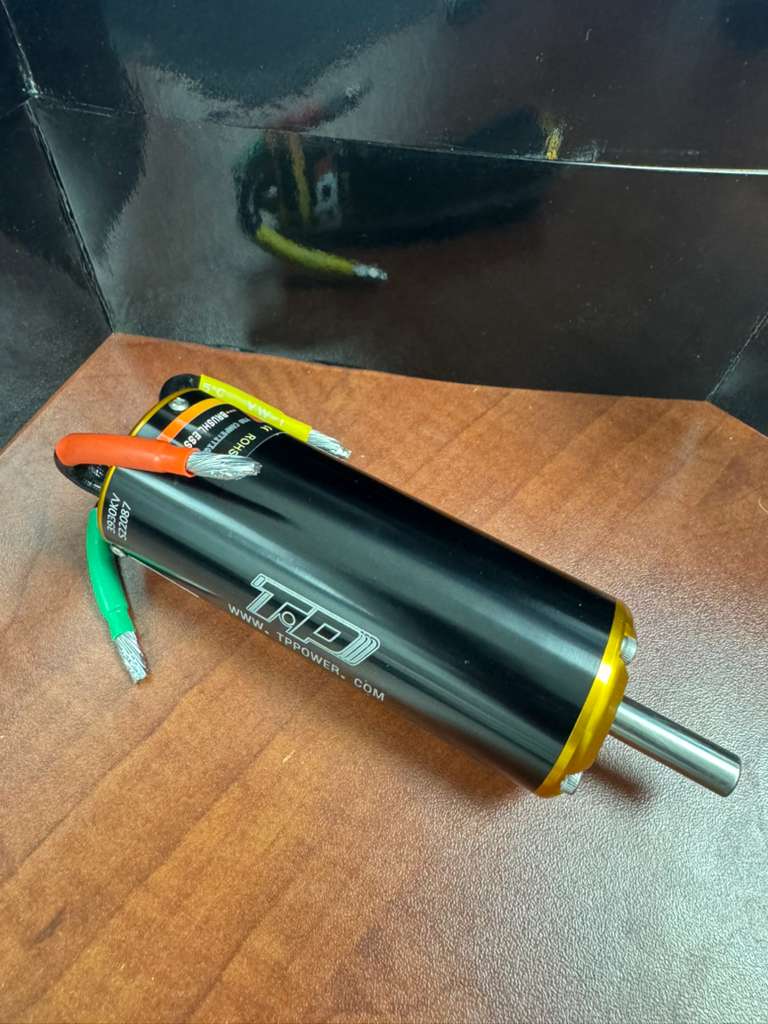

TP POWER 4070SCM 3930KV MOTOR (UP TO 6s) 8mm Shaft

TP Power TP4070SCM 3930KV Brushless Motor 8MM SHAFT

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-SCM Series is a more powerful version of the regular 4070 series motor, with 100K max burst RPM.

Parameters:

Can: Smooth

Winding:

KV: 3930

Max Amps (A): 299

Max Volt (V): 25

Continuous Power (W): 3850

Max Power (W): 7600 for 10 seconds

Max RPM: 100K for 10 seconds

Internal Resistance (Ohm): 0.0042

No-load Current (A): 5.6

Shaft Diameter (mm): 8mm in stock

Diameter X Length (mm): 40 X 82

Output Shaft Length (mm): 18

Weight: 475 g

Pole: 2-pole
