Vannystyle Mini 3.5" Frame Kit - Choose Style

The Vannystyle Mini Frame Kit is an ultra tiny version of the legendary Vannystyle Pro frame, designed specifically for 3.5" props. With the DJI O4 camera on board, this is the perfect little cinema drone or a great neighborhood backyard ripper! Built for those who want extreme agility and control without sacrificing durability or flight feel. The Vannystyle Mini offers exceptional flight performance in a compact, lightweight frame.

Choose between the Universal Camera Plates (DJI O3, Analog, Walksnail, etc.) or the DJI O4 Pro Camera Plates.

Great video from @Spider Sugar_FPV!

Another great tutorial by @TalonFPV

Recommendations

Do not use heavy motors on the arms as this will negatively affect flight performance.
We're recommending smaller motors like 1604 or 1606 currently.

Flight Controller (20x20)

• KISS Ultra V2 Mini + Voltera

• T-Motor Mini F7 3-6S 20x20 Stack

• Foxeer Mini 20x20
• Hobbywing 20x20

4-in-1 ESC:

• T-Motor Mini F7 3-6S 20x20 Stack
• Foxeer Reaper Mini 45A 20 x 20

AIO

• iFlight Blitz E55A (20x20) (Untested but looks promising)

 Motors:

• FPVCycle 16mm Motor - 4100Kv (4S)
• VCI 1606 2850Kv (4S)
• T-Hobby Pacer 1604 2850Kv (6S)
• T-Hobby Pacer 1604 3800Kv (4S)

As folks build out their own builds, we will be updating the recommendations list.

Available Accessories

Your Way Add-on Kit

View More Details about Vannystyle Mini Your Way Add-on Kit

3D Printed Parts

• Front Bumper
• Protection Pack
• Dipole Antenna Mount
• Dual Antenna Mount - Straight
• Dual Antenna Mount - Angled
• DJI O4 Pro Camera Protector & Mount
• Soft Mount Arm Protector
• DJI O4 Pro Camera Plate Inserts

Specifications

• Material: 3K Twill Carbon Fiber
• Prop Size: 3.5"
• Motor Mount: 9mm x 9mm or 12mm x 12mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Arm Thickness: 4mm
• Camera Plate Thickness: 2mm
• CamWiggle Thickness: 1.5mm
• Mid Plate Thickness: 1.5mm
• Stack Size: 20x20 or 25.5x25.5
• Weight:

• • 72g: With Battery Strap, Battery Pad, TPU Antenna Mount, Camera Inserts
  • 250g: Fully built with Battery, WREKD Standard Issue Strap, KISS Ultra V2 Mini, ESC, DJI O4 Pro, Motors,  Props, etc.
    Your weight may vary depending on build decisions.

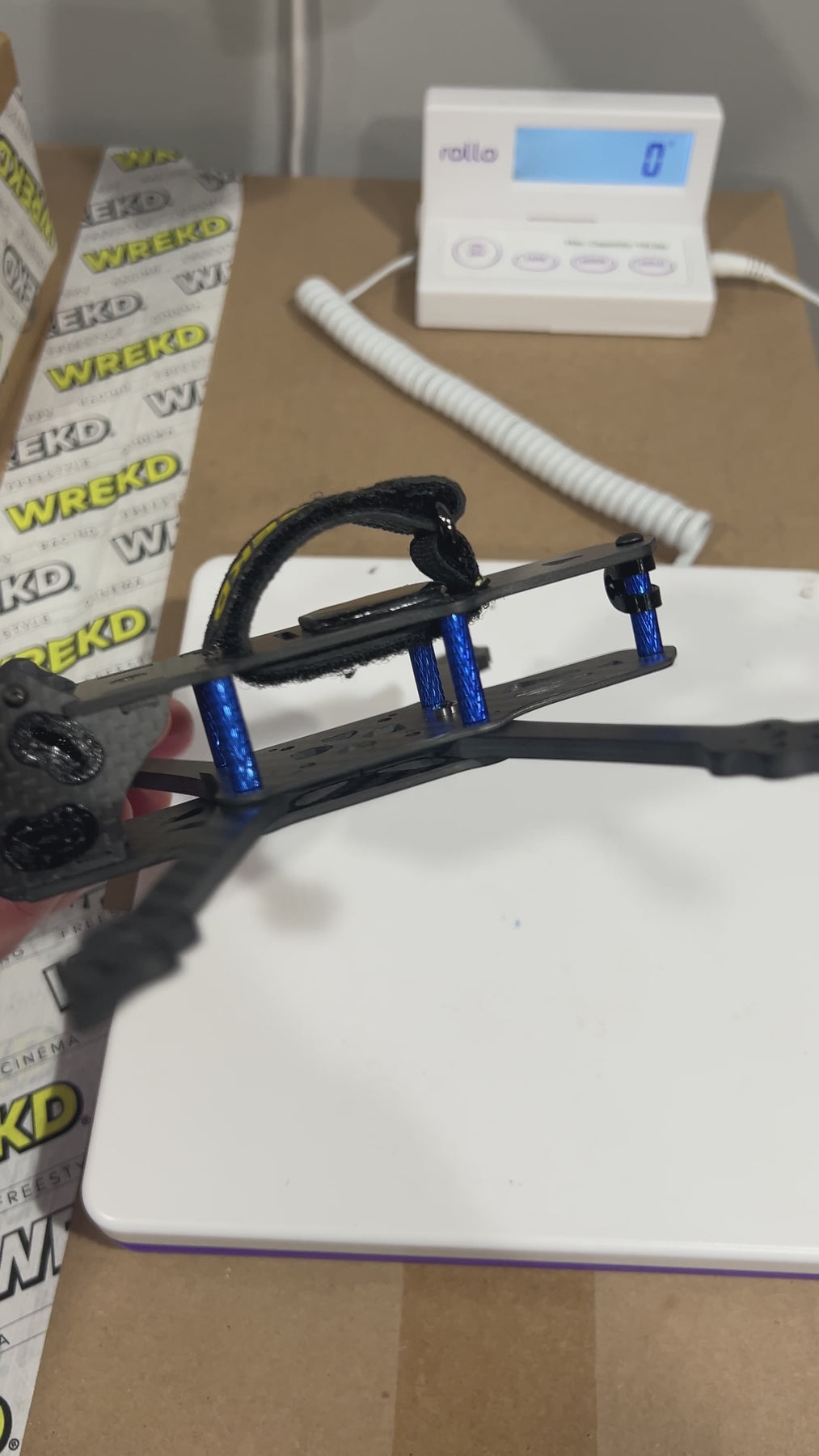

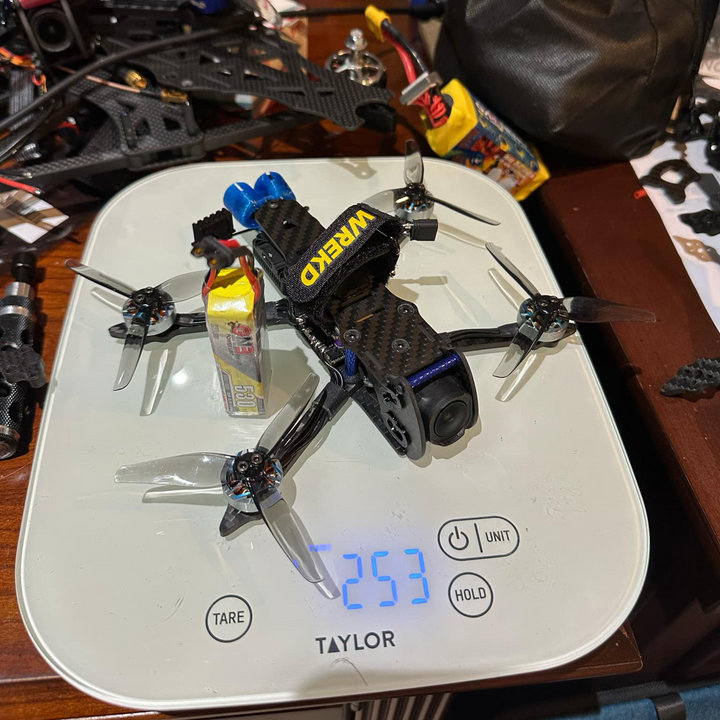

    Alex's build is sitting at 253g with the BEAST strap. Would be at 250g with Standard Issue strap.



Includes

DJI O4 Version

• 1 x Frame Kit
  • 1 x Bottom Plate
  • 2 x Cam Brace Plates
  • 1 x Mid Plate
  • 1 x Top Plate
• 2 x Camera Plates (O4)
• 1 x Arm Kit (Includes 5 arms)

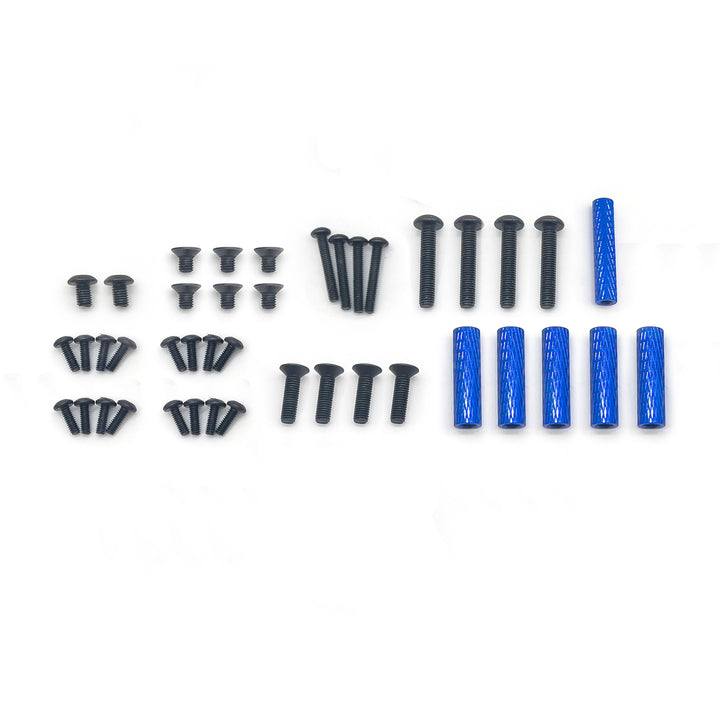

• Hardware Kit

  • 1 x M2 x 23mm Aluminum Standoff (Dark Blue)
  • 5 x M3 x 20mm Aluminum Standoffs (Dark Blue)
  • 3 x M3 x 5mm Steel Countersunk Screws
  • 2 x M3 x 10mm Steel Countersunk Screws
  • 4 x M3 x 12mm Steel Countersunk Screws
  • 5 x M3 x 5mm Steel Button Head Screws
• TPU Kit (7pcs)
  • 4 x TPU Cam Plate Inserts
  • 2 x TPU Cam Protector Inserts (optional)
  • 1 x TPU Dual Antenna Mount
• 1 x WREKD® Standard Issue Battery Strap - 180 x 12.5mm
• 1 x Diamond File For Perfect Fitment
• 1 x Ummagrip Lite Battery Pad (1" x 1")


O3 / Universal Version

• 1 x Frame Kit
  • 1 x Bottom Plate
  • 2 x Cam Brace Plates
  • 1 x Mid Plate
  • 1 x Top Plate
• 2 x Camera Plates (O3/Universal)
• 1 x Arm Kit (Includes 5 arms)
• Hardware Kit

  • 1 * M2 x 23mm Aluminum Standoff (Dark Blue)
  • 5 * M3 x 20mm Aluminum Standoffs (Dark Blue)
  • 6 * M3 x 5mm Steel Countersunk Screws
  • 2 * M3 x 6mm Steel Buttonhead Screws
  • 4 * M3 x 12mm Steel Buttonhead Stack Screws
  • 5 * M3 x 5mm Steel Button Head Screws
  • 16 * M2 x 6mm Steel Button Head Motor Screws
• TPU Kit (7pcs)
  • 2 x TPU DJI O3 Inserts
  • 2 x TPU Analog / Universal Inserts
  • 2 x TPU Cam Protector Inserts
  • 1 x TPU Folding Antenna Mount for O3 / Universal version
• 1 x WREKD® Standard Issue Battery Strap - 180 x 12.5mm
• 1 x Diamond File For Perfect Fitment
• 1 x Ummagrip Lite Battery Pad (1" x 1")
