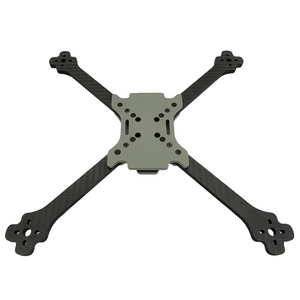

HeavyMetal - 7" Spec Racing Frame (Street League Approved)

This purpose built Street League racing frame doesn't pretend to be anything else!!! Carbon fiber arms come together with powder coated A36 steel center plates giving this quad best in class size, durability, aerodynamics & center of gravity... All of our HeavyMetal variants are compatible with OpenRacer Pods and Source One V3.0 Arms!!!

Weight: 482 grams +/-3g

Specs: 300mm motor post to motor post diagonally | Tru-X | 6mm × 15mm Carbon Fiber Arms | 4.5mm Center Plates | 20mm × 20mm FC Mounting | 25.5mm × 25.5mm FC Mounting | 30mm × 30mm FC Mounting (sharing arm screw / not recommended) | Max Prop Size: 8" with standard arms

Accessories Downloadable For FREE@ https://www.thingiverse.com/turtlemodefpv/designs

Note: This design is part of the HeavyMetal - 7" Spec Frame open source project of which TurtleModeFPV is the originator and designer... .dxf /.stl /.stp frame files available @ HeavyMetal - Shared Files - Google Drive

Included:

- HeavyMetal - Battery Plate - (1x)
- HeavyMetal - Stack Plate - (1x)
- HeavyMetal - 7" Spec Arms - (4x)
- HeavyMetal - Hardware Kit (1x)

Additional Resources:

TurtleModeFPV is an official frame sponsor of Street League Spec Drone Racing: See our frame and download custom Street League firmware @ https://streetleague.io/build-guide/
