Amass MR30 Pigtail - Male (10 pcs)

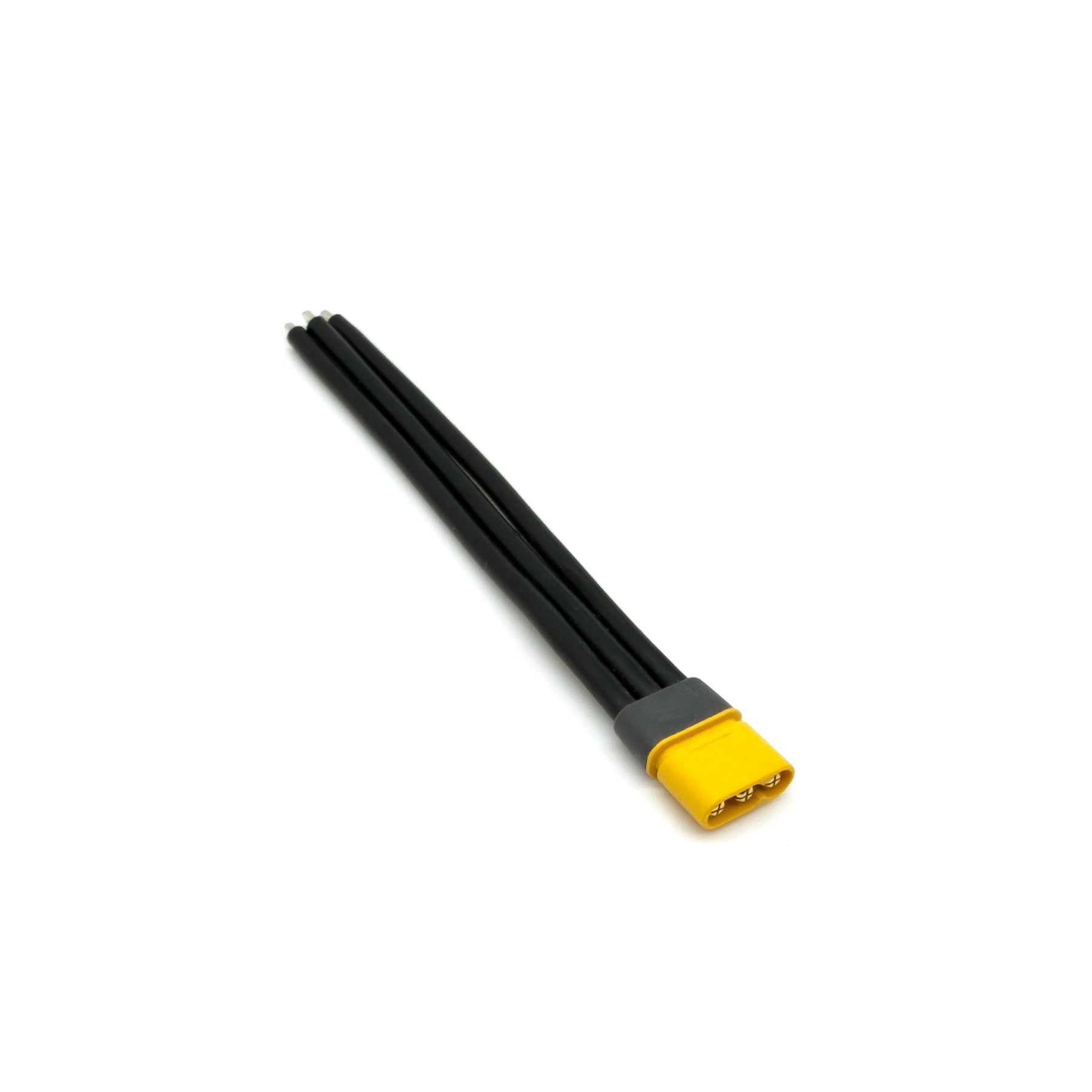

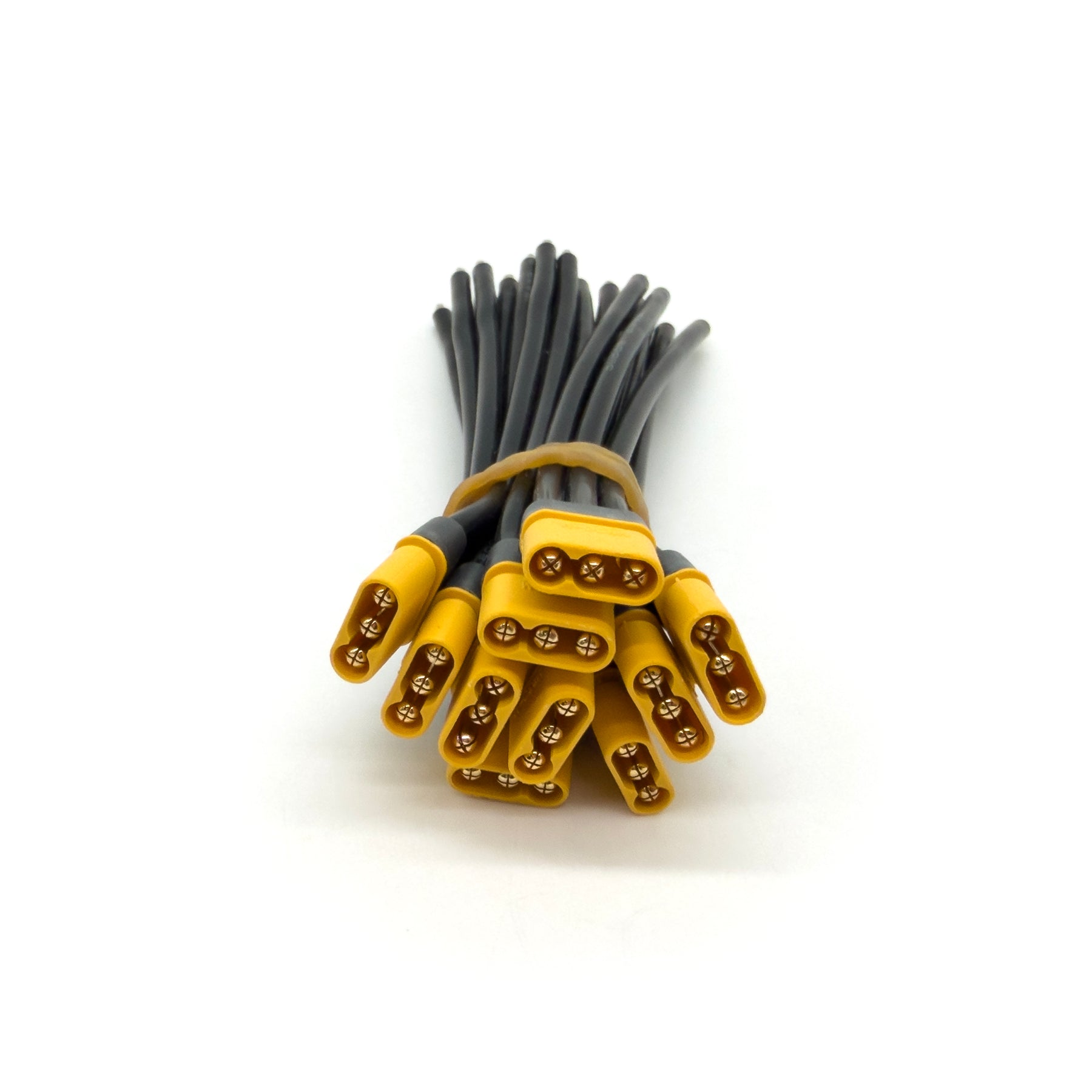

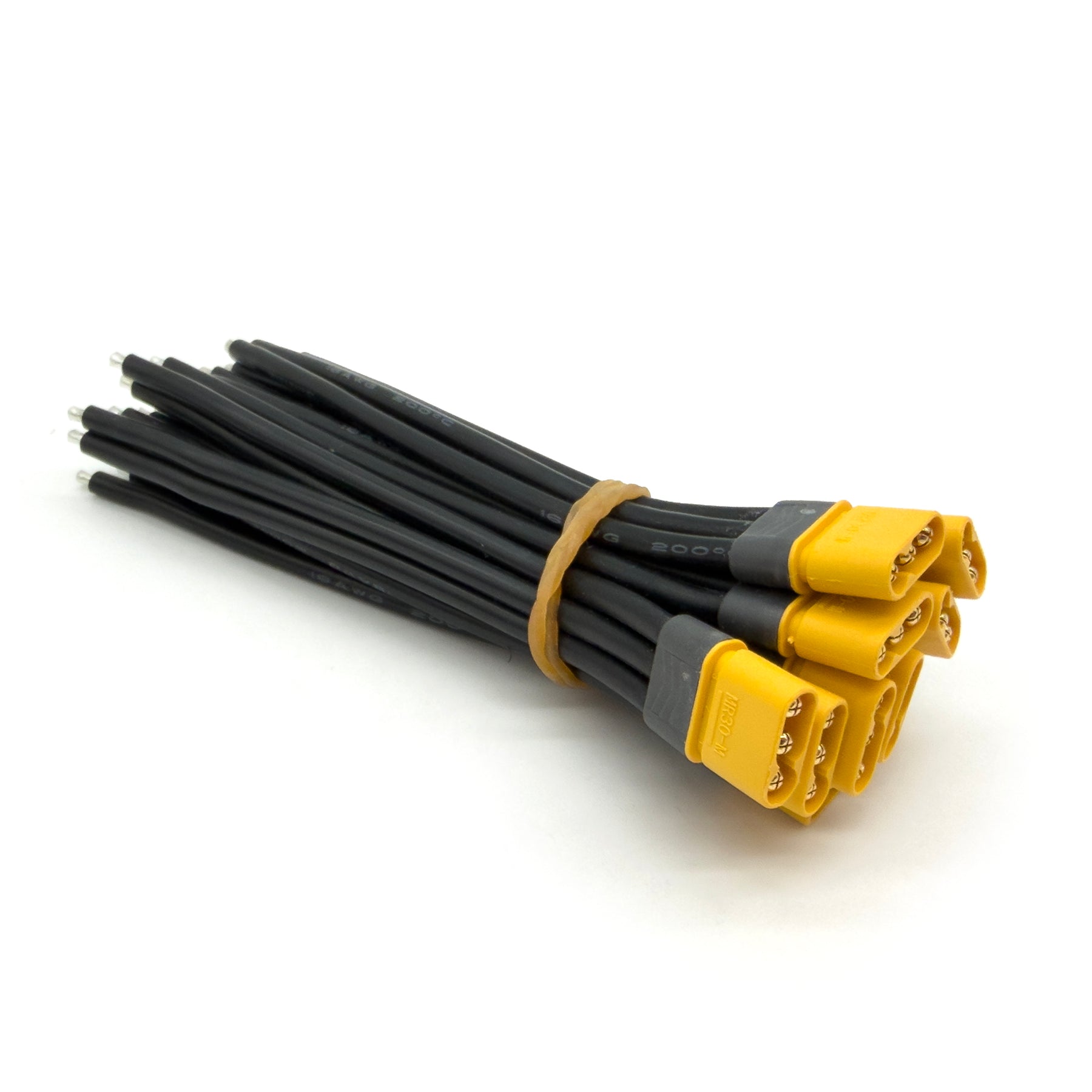

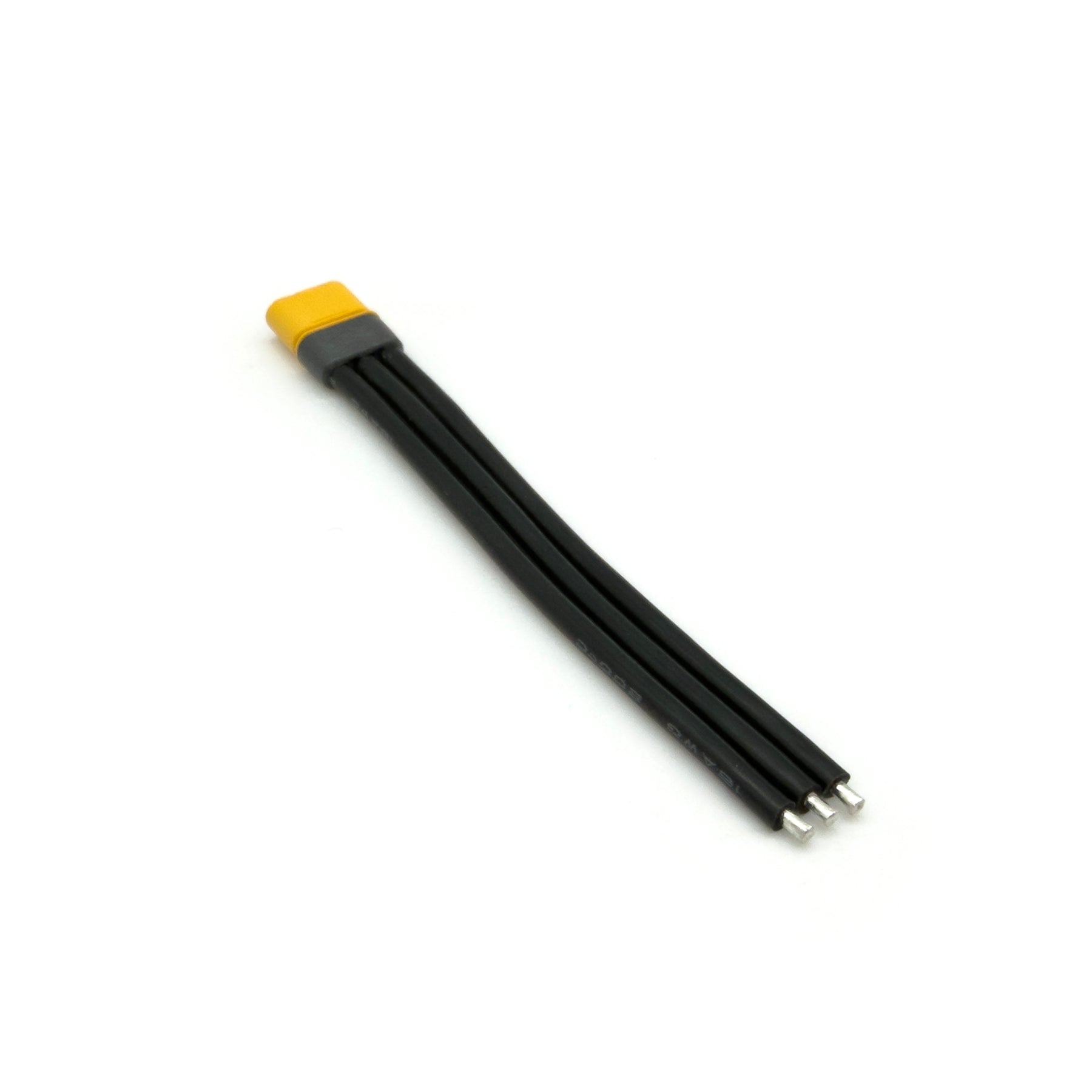

These MR30 male connectors are ready to install to your ESC. Cut to length, pre-tinned, perfect for 10", 8" builds, or cut them shorter for your 5" builds.

The good news is, you don't have to deal with soldering the connector side, it's already done for you.

We put them on the ESC side, we've seen them on the motor side as well. This is reallhy just a preference of course, but either way - easier.

Made with ❤️ at WREKD.

Check out all our pigtails, adapters and connectors!

Features

• Suitable for connecting ESCs and motors
• With protective sleeve
• Assistive weld foot, more stable

Specifications

• Body Material and Surface Plating: Brass and gold plated
• Insulation Material: PA66
• Original Internal Resistance: 0.8MΩ
• 500 Times Internal Resistance: 0.85MΩ
• Max. Continuous Current: 30A (within 30 minitues)
• Max. Instantaneous Current: 40A (within 1 minitues)
• Recommended Cable Spec: 18AWG 2.8mm diameter
• Recommended Soldering Spec: 400° C/3S
• Weight: 1.2g/pcs
• Insulation Degree: UL94V-0
• Machine Life: 3000 Times

Includes

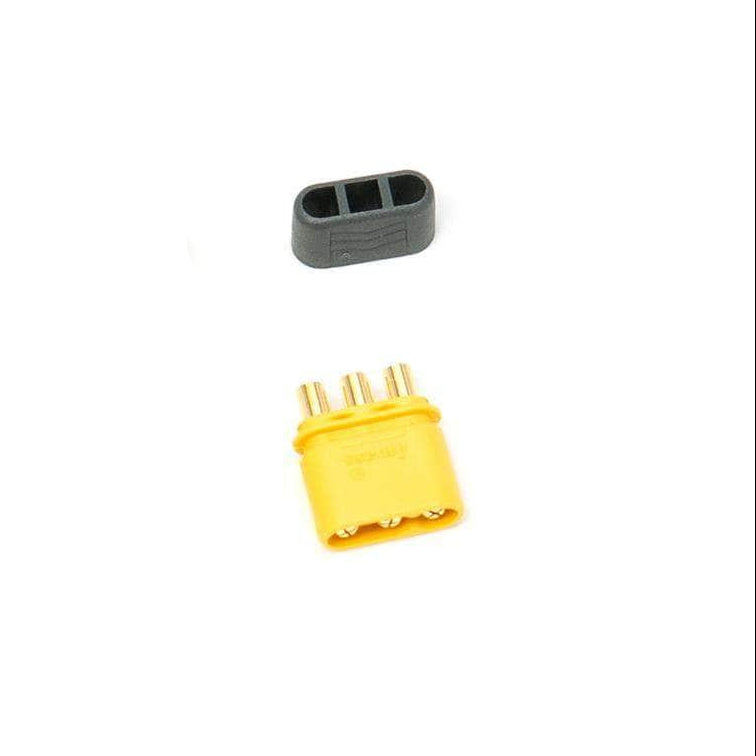

• 10 x AMASS MR30 Connector Male w/ Protective Shield
