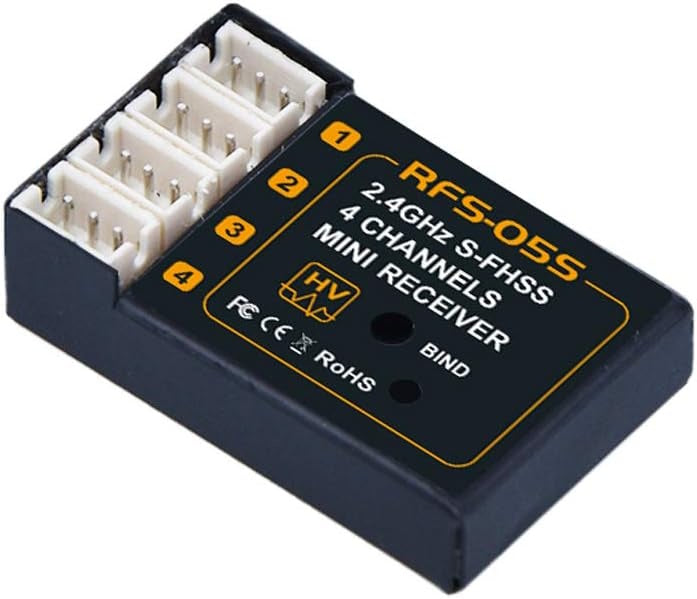

AGFRC Receiver RFS05S 2.4G 4CH Compatible FUTABA for RC Drone Mini Aircraft / RC

AGFRC Receiver RFS05S 2.4G 4CH Compatible FUTABA for RC Drone Mini Aircraft Mini Car Mini Fixed Wing Small Aircraft.

Product Description
RFS05S
Operating Voltage: 3.3V～8.4V
Dimension: 26x16.5x7.5mm
Weight: 3.5g
No. Of Channels: 4CH
Compatible: Futaba S_FHSS/ TM-FH RF Module control system
Application: Futaba 14SG, 10J, 8J, 6J, 4GRS, 4PX, 7PX, 4PV, 3PV etc. S_FHSS system
Features:

1) Professional onboard patch antenna an high quality PA to ensure high receiving sensitivity in micro size;
2) Integrated stabilizing circuit, operating voltage up to 1-2S Lipo, it won't be out of control for sudden low voltage;
3) Light weight, micro size, full 4CH output, especially for Mini-Z or mini aircraft.
Bind Procedure
1. Bring the transmitter and the receiver close to each Other, within 20 inches (half meter).
2. Turn on the transmitter.
3. Turn on the receiver
4. Press and hold the Link switch more than two(2) seconds.
When the link is complete,the LED in the receiver changes to solid green.
When the ID cannot be read due to the surrounding environment,
try reading it with the transmitter and receiver antennas touched.
