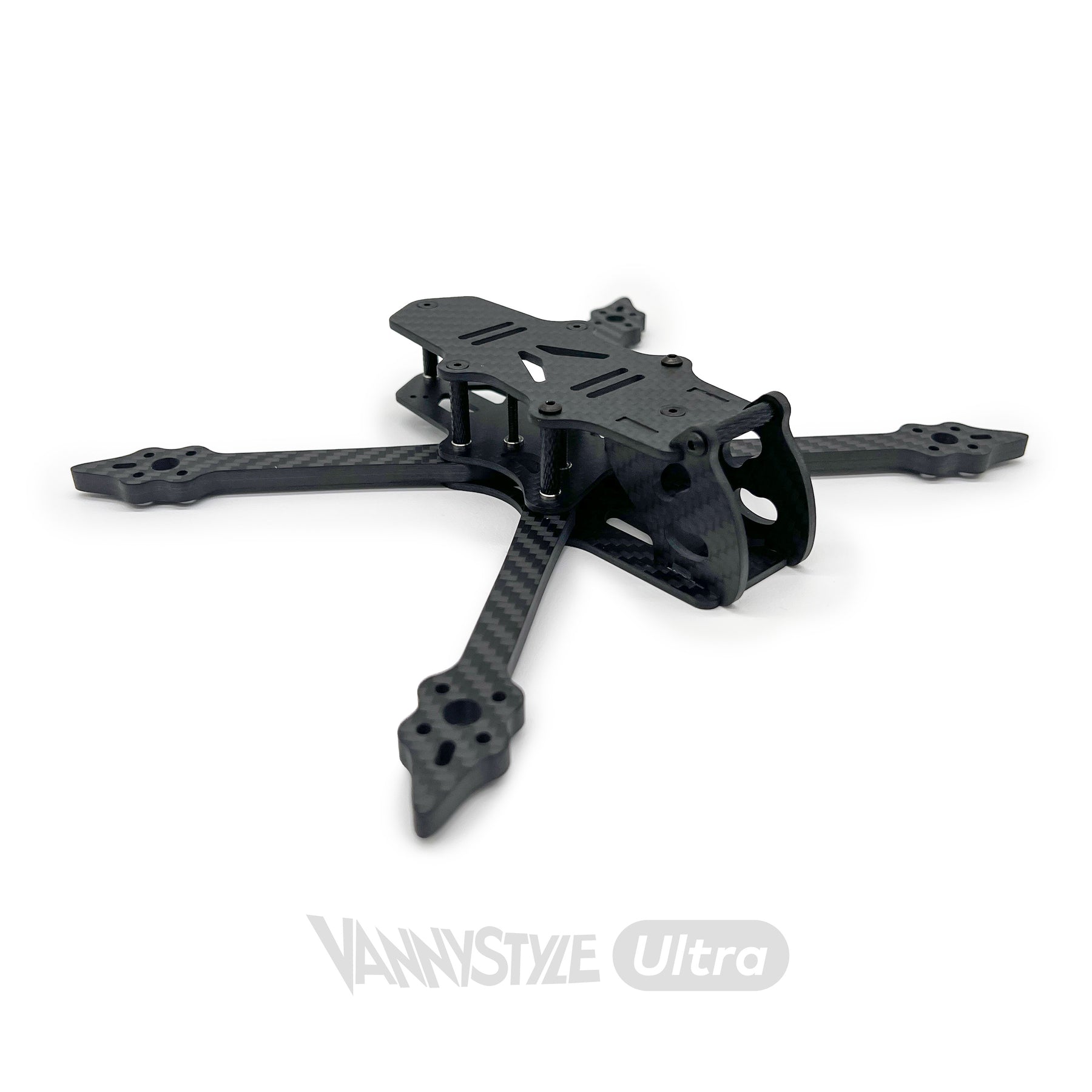

Vannystyle Ultra Frame Kit

After the internationally acclaimed success of the Vannystyle Pro - a frame praised for its balance, durability, and signature flight feel - Alex Vanover (@Captainvanover) set out to evolve his design once more. The Vannystyle Ultra is that next step forward: a refined continuation of what worked, focused on tighter geometry, cleaner assembly, and an even more durable and connected flight experience.

Gone are the days of juggling arm styles and assembly quirks - the Ultra simplifies everything with a single, unified arm design. Each 6 mm thick arm is precision-tuned for strength, vibration balance, and ease of replacement. No more confusion, no more over-complication - just one set of gloriously refined arms built for real-world freestyle abuse.

The Vannystyle Ultra also ditches unnecessary vertical assembly plates, streamlining the build for faster setup and a cleaner aesthetic without sacrificing rigidity. The result? A stronger, simpler, and more aerodynamic platform that feels tighter in the air and easier to maintain on the bench.

The FPV world keeps moving. As electronics get smaller, lighter, and more efficient - and flight software becomes more precise - the frames that carry them evolve too. The Ultra takes advantage of these advancements, widening the front end just enough to support the latest HD systems like the DJI O4 Pro, while keeping the compact feel and balance that made the Pro legendary.

Features

• One arm style, zero confusion: No more mixing front and rear angles - one unified 6 mm arm for ultimate strength and simplicity.
• No vertical plates: Simplified assembly with fewer parts, cleaner lines, and faster field repairs.
• No-frills design: Every component earns its place - no gimmicks, no wasted material.
• Compact geometry: Smaller overall footprint for sharper control and smoother reversals.
• Balanced strength: 6 mm arms paired with 2.5 mm plates - tuned for stiffness without excess weight.
• 20×20 stack only: Simplified electronics bay, reduced clutter, and lower center of gravity.
• Wider front end: Accommodates the DJI O4 Pro camera while keeping proportions tight and functional.
• Seamless compatibility: Supports DJI O4 Pro, O3, Walksnail Avatar, HDZero, and analog systems.
• Flight-proven by Alex Vanover (@Captainvanover): Tuned through countless packs, refined by feel, and built around real-world freestyle flying.

Specifications

• Frame Type: Freestyle
• Motor Mount: 16×16 mm / 19×19 mm
• Stack Mounting: 20×20 mm only
• Camera Mount: 19 mm & 20 mm - compatible with DJI O4 Pro, O3, Walksnail, HDZero, and analog systems. 22mm wide camera cage
• Top Plate: 2.5 mm ultra-durable carbon
• Bottom Plate: 2.5 mm ultra-durable carbon
• Mid Plate: 2.0 mm ultra-durable carbon
• Arms: 6.0 mm ultra-durable carbon
• Camera Side Plates: 3.0 mm ultra-durable carbon
• Wheelbase: 225 mm (5-inch class)
• Weight: ≈ 120 g (with hardware)

Camera Plates

The Vannystyle Ultra INCLUDES two camera plate options, chosen based on your VTX and camera setup.

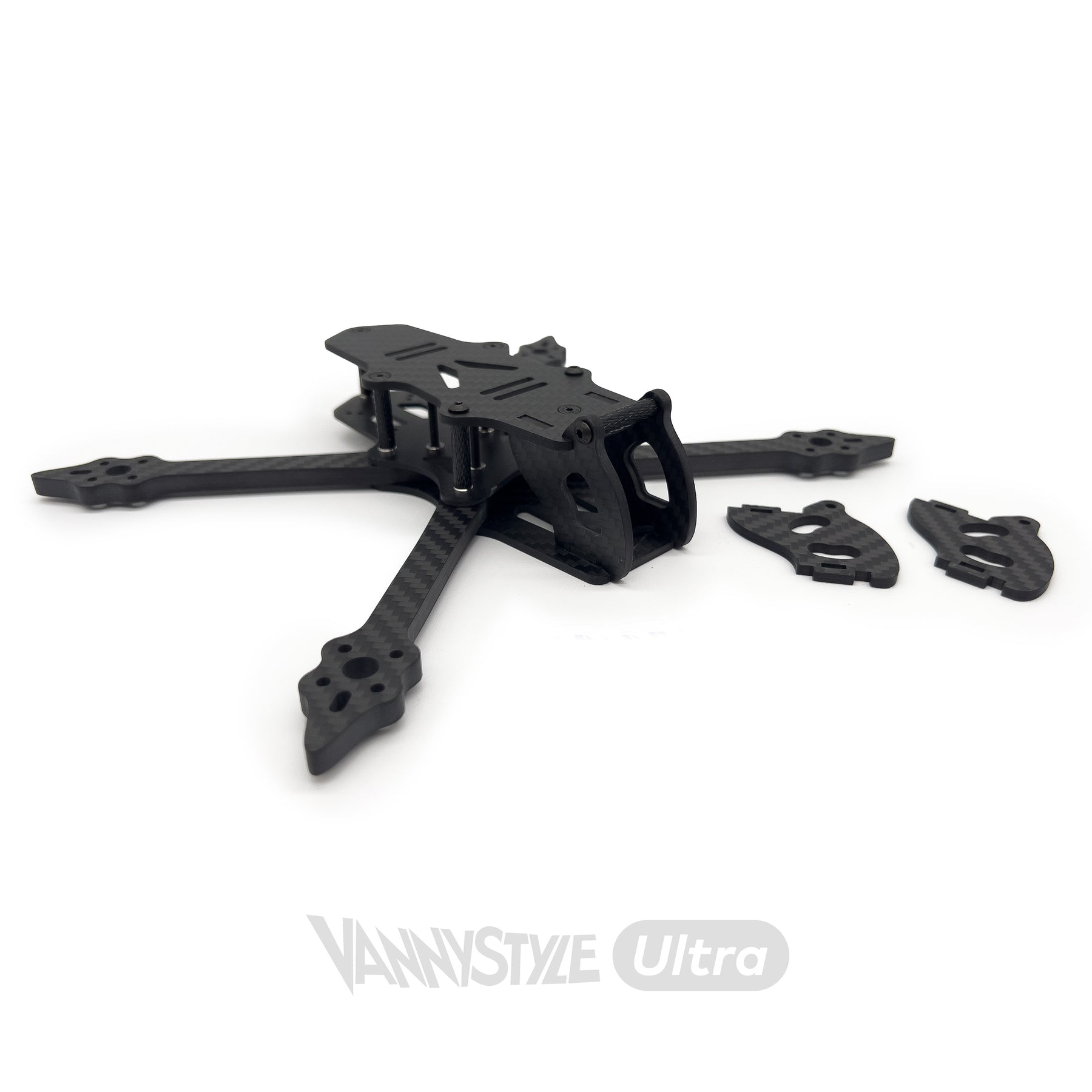

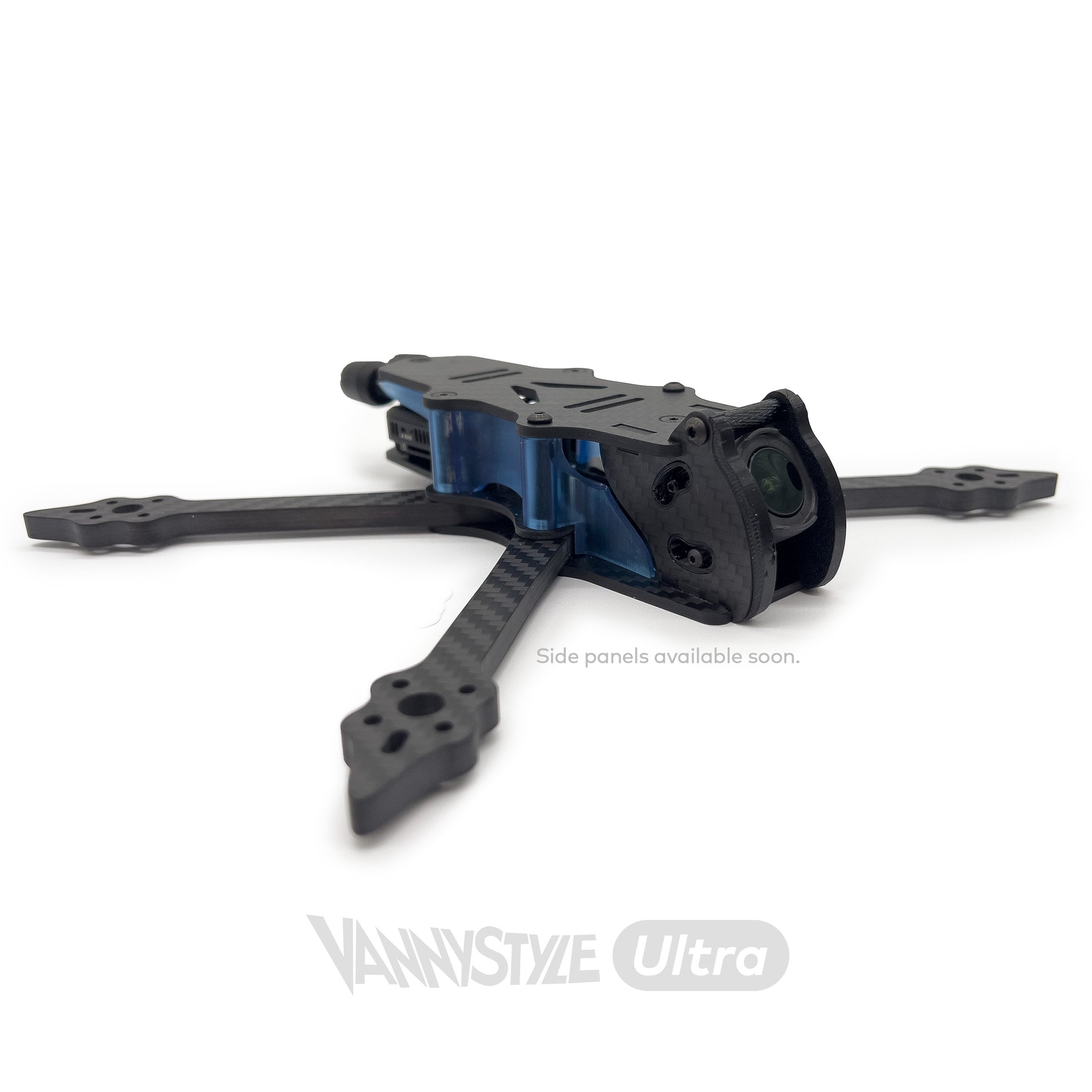

• DJI O4 Pro Camera Plates
  Designed specifically for the O4 Pro camera, which uses a 20 mm body but has a much wider horizontal screw spacing than traditional micro cameras. These plates match the O4's pattern exactly, keeping the camera centered and secure while maintaining full front-end protection. The plate length has been extended compared to the previous Vannystyle Pro frame for improved strength and durability under impact. Choose this option if you're running the latest DJI O4 Pro Air Unit setup.
• O3 / Universal Camera Plates
  Used for all other systems, including DJI O3, Walksnail Avatar, DJI O4 Lite Air Unit, HDZero, and analog micro cameras (19 mm). These follow the standard micro mounting pattern for full compatibility across most current FPV cameras. They also share the same extended-length geometry for added rigidity and improved protection around the lens area.

Both plate styles are made from ultra-durable carbon construction with slotted holes for precise angle adjustment. Each version is purpose-built for its system - not a compromise - ensuring your camera sits exactly where it should with maximum stability and impact resistance.

Included 3D Printed Parts

The Vannystyle Ultra Frame Kit includes the following 3D printed TPU parts (printed at 100% infill TPU for maximum durability).

• O4 Pro Camera Insert w/ Protection (2 pcs) - Provides secure mounting and protection for DJI O4 Pro cameras
• O4 Pro Camera Insert (2 pcs) - Standard mounting solution for DJI O4 Pro cameras
• DJI O3 Camera Insert (2 pcs) - Designed for DJI O3 Air Unit cameras
• Walksnail Moonlight 4K Camera Insert (2 pcs) - Optimized for Moonlight 4K camera systems
• Analog 14 Camera Insert (2 pcs) - Standard 14mm analog camera mounting
• Analog 19 Camera Insert (2 pcs) - Standard 19mm analog camera mounting
• O4 Pro Antenna Mount (1 pcs) - Secure antenna mounting for DJI O4 Pro systems
• Walksnail Moonlight Antenna Mount (1 pcs) - Antenna mount for Walksnail Moonlight 4K
• Standoff Antenna Mount (1 pcs) - Universal standoff-style antenna mounting solution
• GoPro Base Mount (1 pcs) - Tabbed action camera base mount for GoPro and similar cameras

Optional 3D Printed Accessories

Need additional parts or want to customize your setup? These optional accessories are available separately:

• Vannystyle Ultra - TPU Kit (1 set) - Complete set including camera insert, antenna mount, and GoPro base mount

All 3D printed parts are available in multiple colors and can be purchased separately if you need replacements or want to try different configurations.

Compatibility & Mounting

The Ultra's frame design centers around a 20×20 mm M2 mounting grid for the stack and VTX. For systems that use other hole patterns, we offer 3D printed sleds and mounts through the WREKD® store.

Includes

Carbon Plates

• 1 × Top Plate (2.5 mm)
• 1 × Mid Plate (2.0 mm)
• 1 × Bottom Plate (2.5 mm)
• 4 × Arms (6.0 mm)
• 2 × Camera Plate Braces
• 2 × DJI O4 Camera Plates (3.0 mm)
• 2 × Universal Camera Plates (1L + 1R, 3.0 mm)

3D Printed TPU Parts

• 2 × DJI O4 Pro Camera Inserts
• 2 × DJI O3 Camera Inserts
• 2 × Walksnail HD 19mm Camera Inserts
• 2 × Analog 19mm Camera Inserts
• 2 × DJI O4 Lite Camera Inserts
• 1 × TPU Rear Antenna Mount
• 1 × TPU Tabbed Action Camera Base Mount

Accessories

• 1 × WREKD® Standard Issue Battery Strap
• 1 × Vannystyle Battery Pad

Hardware

• 5 × M3 × 20 mm Knurled Standoffs (Aluminum, Black Anodized, OD = 5 mm)
• 1 × M3 × 22 mm Knurled Standoff (Aluminum, Black Anodized)
• 2 × M3 × 6 mm Countersunk Screws (Steel, Black, YFS 12.9)
• 3 × M3 × 8 mm Countersunk Screws (Steel, Black, YFS 12.9)
• 4 × M3 × 16 mm Countersunk Screws (Steel, Black, YFS 12.9)
• 4 × M3 × 30 mm Countersunk Screws (Steel, Black, YFS 12.9)
• 2 × M3 × 8 mm Button Head Screws (Steel, Black, YFS 12.9)
• 19 × M3 × 8 mm Button Head Screws (Steel, Black, YFS 12.9)
