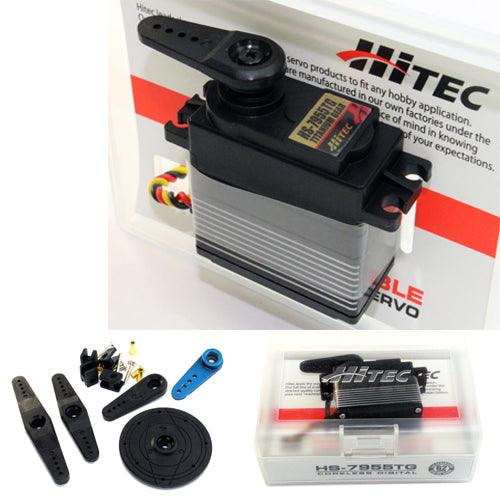

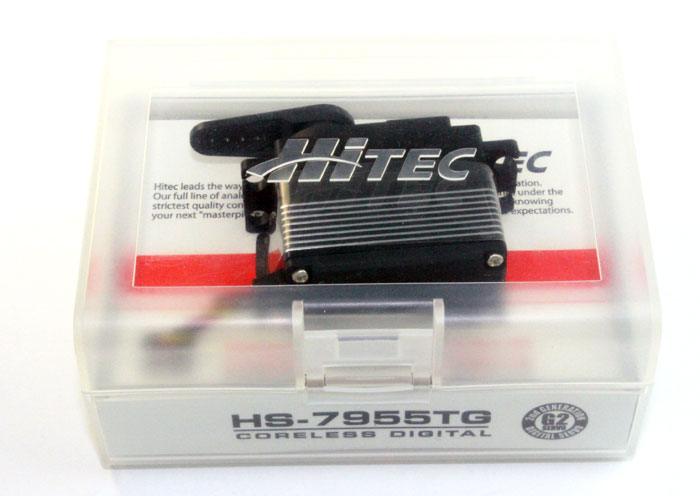

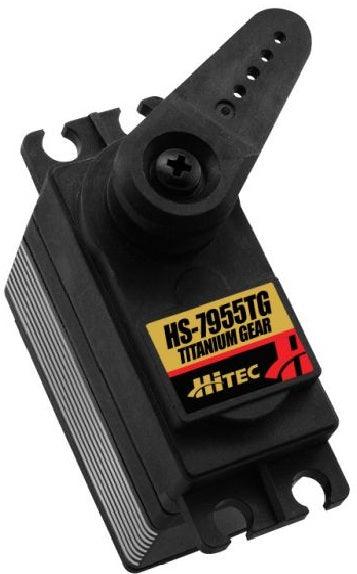

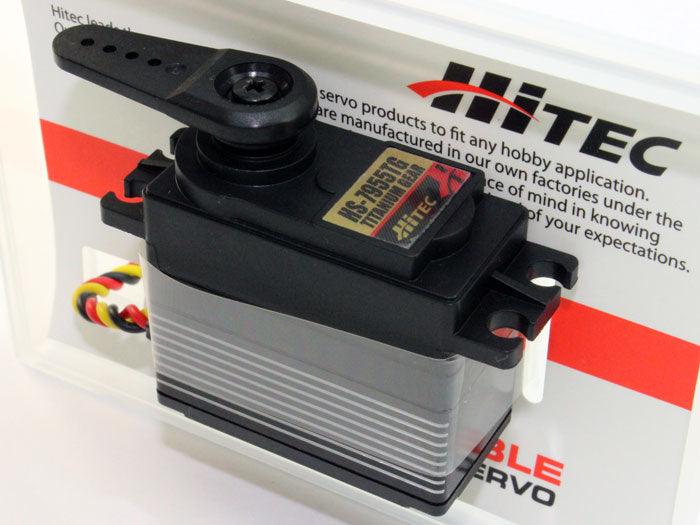

Hitec HS-7955TG High Torque Titanium Gear Coreless Servo

Hitec HS-7955TG High Torque Titanium Gear Coreless Servo

Description:

Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features:

• G2 Digital Circuit
• Coreless Motor
• Dual Ball Bearing Supported Output Shaft
• Titanium Gear Train (MK first gear)

Programmable Features Include:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point
• Resolution* (default is high resolution)
• Overload Protection* (default is off)

Specifications:

• Motor Type: Coreless
• Bearing Type: Dual Ball Bearing
• Speed (4.8V/6.0V): 0.19 / 0.15
• Torque oz./in. (4.8V/6.0V): 250 / 333
• Torque kg./cm. (4.8V/6.0V): 18.0 / 24.0
• Size in Inches: 1.57 x 0.78 x 1.45
• Size in Millimeters : 39.88 x 19.81 x 36.83
• Weight ounces: 2.29
• Weight grams: 64.92
